P/N: A07004-8
Manufacture: PF Industries
Used to jack the MLG when all tires are flat. Used as a set with customers supplied jack.
767-200, 767-200ER & -300 per flag note 2. Exclusively on VA 514-VA699, VA707-VA716, VA718-VA799, VB055, VB283, VB320,V8323, VB410.
129 Trace
For more information contact:TFASI
November 11 2021
AD #7384

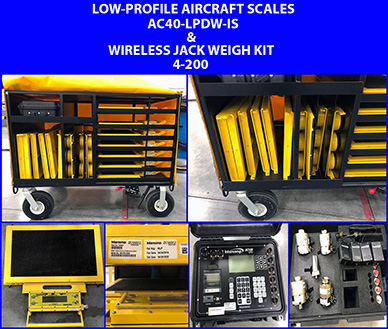

P/N: AC40-LPDW-IS & 4-200
Manufacture: INTERCOMP
Kit includes: seven 40,000 lb roll on scales (one is spare), six Ac-15/40 ramps, 8 platforms, four 50,000 lb load cells, four wireless transmitters & one AC100 RFX universal CPU, AC40LP transport cart with top.
For more information contact: CPA
OCT 06 2021
AD #3309
P/N: 8838
Manufacture: Malabar
50 ton beam assembly used for dual flat tires on 737 aircraft, customer supplied appropriate axle jacks
737 all
145 Trace
For more information contact:TFASI
April 26 2021
AD #7029
P/N:711
Manufacture: Malabar International
15 ton with air assist, and load gauge, towbar.
MD80 series tail, 737 nose
55 inch min, 42 inch hydraulic lift, 4 inch screw, 100 inch max height
For more information contact: TFASI
Jan 19 2021
AD #3543
P/N: 8519
Manufacture: Columbus/Regent
30 ton nose jack. 82″ min x 66″ hyd lift x 24″ screw x 172″ max
747 (ALL), 757, 767-300 (gear swing), 787 (gear swing) DC10, MD11
For more information contact: TFASI
Dec 22 2020
AD #3537
P/N: 748
Manufacture: Malabar
40 ton tail jack, 140″ min x 64″ hyd lift, 10″ screw, 214″ max
Serviceable
767 ALL
For more information contact: TFASI
Dec 22 2020
AD #3535
P/N: BC300
Manufacture: Malabar
Brake cradle used with tire cart to remove & install brakes.
Used on small narrow body aircraft.
For more information contact: TFASI
June 09 2020
AD #3496
P/N: 3565-35
Manufacture: Columbus/Regent
35 ton
65″ min / 44″ hyd / 6″ screw / max 115″
737 ALL Series including MAX’S / DC9 / MD80 / MD90 / B717 / 727 / ERJ-170, ERJ-175, E175-E2, ERJ-190, E190-E2, ERJ-195, E195-E2 Embraer Lineage 1000
For more information contact: TFASI
Mar 25 2020
AD #3484
P/N: 725A
Manufacture: Malabar
25 ton tripod jack with three variable heights. 10″ screw
60″ to 128″ nose 737 all series, 707, 720, KC135, DC8, F100, A320 (gear swing only)
WING: 737-100 thru -500, DC9, F28, F100, 717, EMB 170
TAIL: 727,DC9 (w/o stair), MD80, MD90
SECOND LEG: 78″ to 128″ nose 727,
TAIL: 737 classic, A320 (gear swing only)
THIRD LEG: 96″ to 146″ nose 757 (gear swing only)
TAIL: 737 all series
WING: Dash 7, dash 8, DHC5, F27, F50
For more information contact: TFASI
Mar 11 2020
AD #3464
P/N: 8978
Manufacture: Columbus/Regent
25 ton nose jack
106 inch min/40.5 inch hyd/16 inch screw/162.5 inch max
757 nose / ATR 42 & 72 main wing / Dash 7 & Dash 8-100, -300 main wing / F27 main wing
For more information contact: TFASI
Feb 14 2020
AD #3435
